Solar cell efficiency could increase by 15 percent with addition of nanocones

03/29/2016 - 14:08

Researchers at the Royal Melbourne Institute of Technology (RMIT University) in Australia have created an entirely new nanostructure they have dubbed a “nanocone”. It combines the upside-down physics of topological insulators with the easier-to-explain process of plasmonics. The result is a nanomaterial that can be used with silicon-based photovoltaics to increase their light absorption properties.


Ref: Intrinsically core-shell plasmonic dielectric nanostructures with ultrahigh refractive index. Science Advances (25 March 2016) | DOI: 10.1126/sciadv.1501536 | PDF (Open Access)

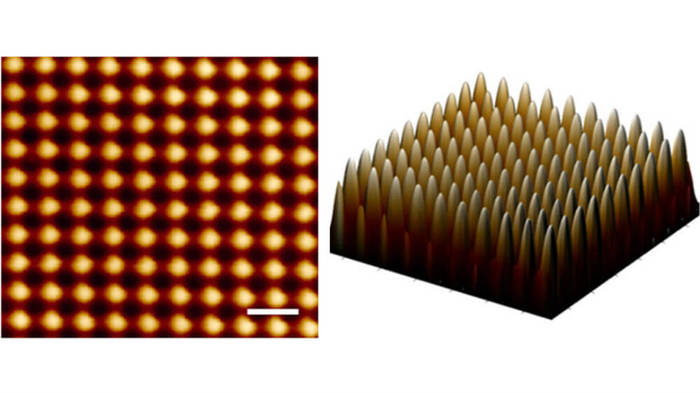

Topological insulators are a new class of quantum materials with metallic (edge) surface states and insulating bulk states. They demonstrate a variety of novel electronic and optical properties, which make them highly promising electronic, spintronic, and optoelectronic materials. We report on a novel conic plasmonic nanostructure that is made of bulk-insulating topological insulators and has an intrinsic core-shell formation. The insulating (dielectric) core of the nanocone displays an ultrahigh refractive index of up to 5.5 in the near-infrared frequency range. On the metallic shell, plasmonic response and strong backward light scattering were observed in the visible frequency range. Through integrating the nanocone arrays into a-Si thin film solar cells, up to 15% enhancement of light absorption was predicted in the ultraviolet and visible ranges. With these unique features, the intrinsically core-shell plasmonic nanostructure paves a new way for designing low-loss and high-performance visible to infrared optical devices.
