Novel metamaterial lens is thinner than waves of light - Will advance microscopes, virtual reality, etc.

06/04/2016 - 17:25

Joshua Sokol

It might be small, but it’s a big feat. A lens has been built that is thinner than the waves of light it focuses. Such lenses, made from light-warping metamaterials, might someday replace the heavier glass lenses used in everything from microscopes to phone cameras.


Ref: Metalenses at visible wavelengths: Diffraction-limited focusing and subwavelength resolution imaging. Science (3 June 2016) | DOI: 10.1126/science.aaf6644

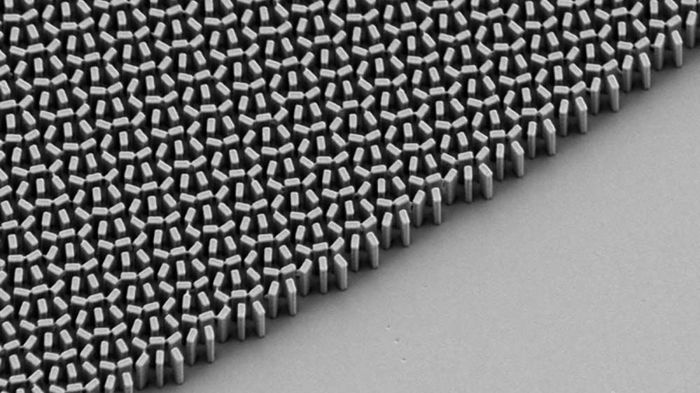

Subwavelength resolution imaging requires high numerical aperture (NA) lenses, which are bulky and expensive. Metasurfaces allow the miniaturization of conventional refractive optics into planar structures. We show that high-aspect-ratio titanium dioxide metasurfaces can be fabricated and designed as metalenses with NA = 0.8. Diffraction-limited focusing is demonstrated at wavelengths of 405, 532, and 660 nm with corresponding efficiencies of 86, 73, and 66%. The metalenses can resolve nanoscale features separated by subwavelength distances and provide magnification as high as 170×, with image qualities comparable to a state-of-the-art commercial objective. Our results firmly establish that metalenses can have widespread applications in laser-based microscopy, imaging, and spectroscopy.
