A new universal wireless charger is almost ready - Compatibility will not be an issue

10/14/2015 - 22:03

Jack Loughran

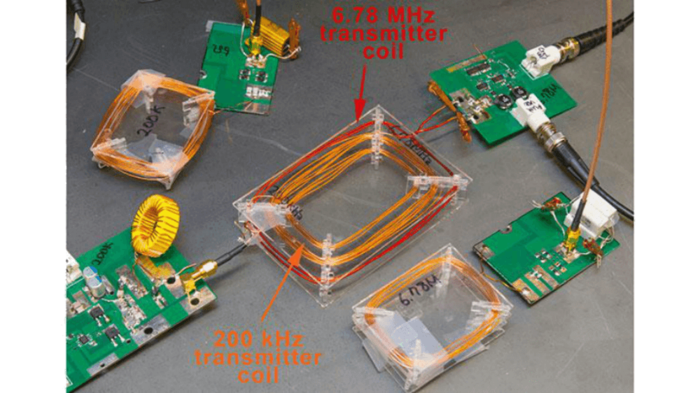

A wireless charger that supports multiple frequencies in order to charge devices with different standards has been developed by electrical engineers at the University of California. The charging platform could be used to charge smartphones, smartwatches, laptops and tablets at the same time, regardless of which wireless standard, or frequency, each device supports.

"To our knowledge, this is the only multi-standard wireless power transmitter that's been shown to operate simultaneously at two different frequencies with high efficiency," said the study’s lead, professor Patrick Mercier.

READ MORE ON THE INSTITUTION OF ENGINEERING AND TECHNOLOGY

Ref: Wireless Power Transfer with Concurrent 200 kHz and 6.78 MHz operation in a Single Transmitter Device. IEEE Transactions on Power Electronics (2015) | DOI: 10.1109/TPEL.2015.2480122

ABSTRACT
